We are a company engaged in product modeling design, structural design, automobile vehicle and parts design, We mainly focuses on the field of automotive headlights, providing lamp structure design,CAE analysis solutions such as optical design, thermal and fog analysis, and vibration analysis, Provide headlight LED lens optical design and product analysis.
1:Optical analysis of headlights:
simulated light matching light type diagrama
2:Optical analysis of lamp:

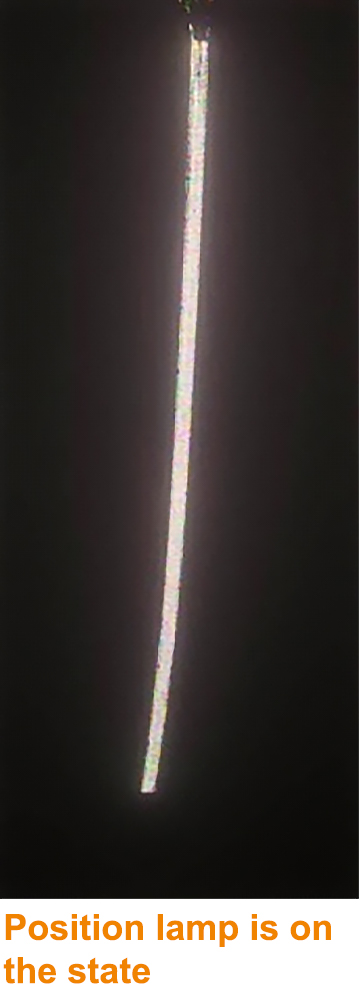

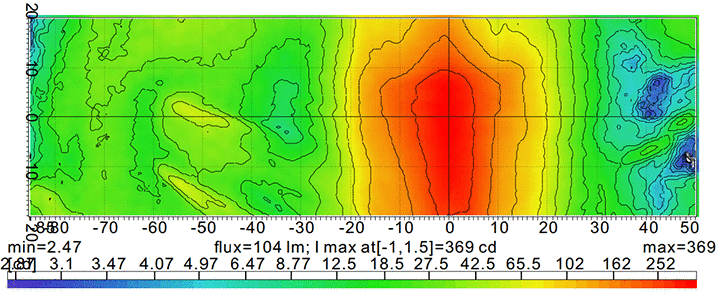

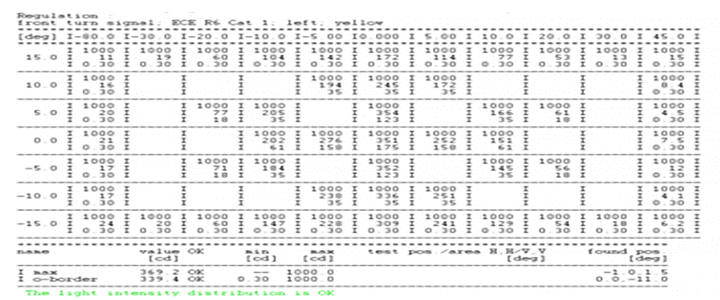

simulation of position lamp lighting, LED particle + inner
3.Optical analysis of headlights:

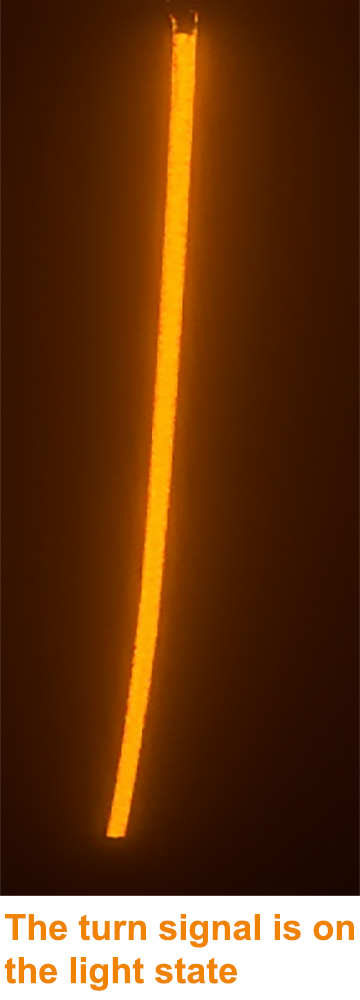

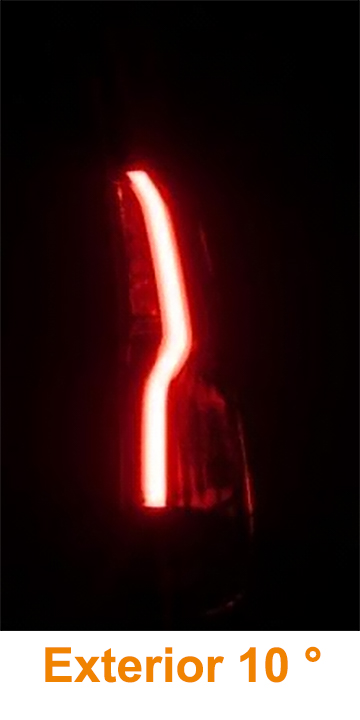

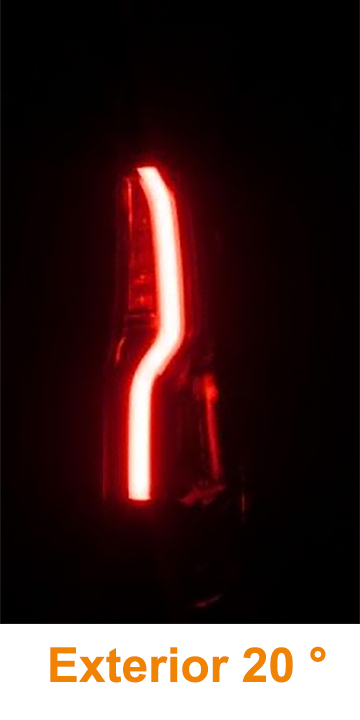

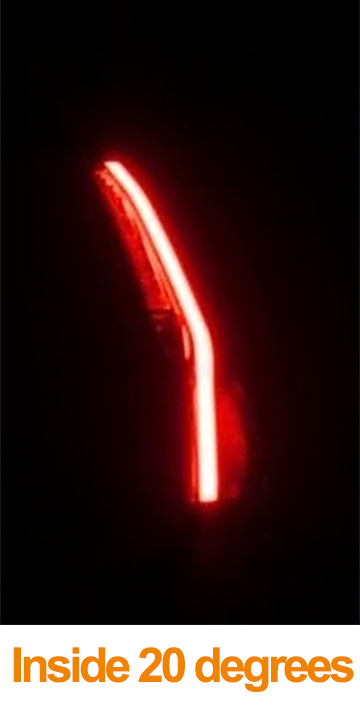

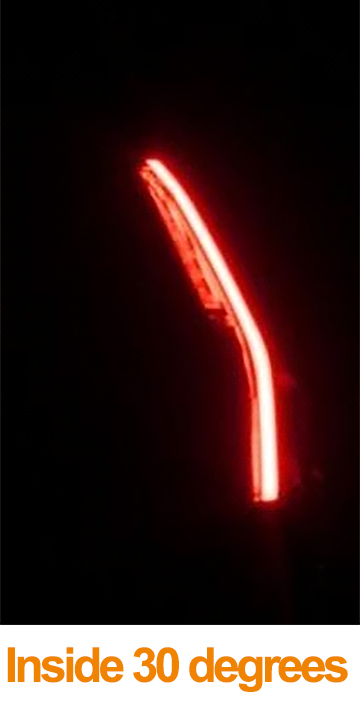

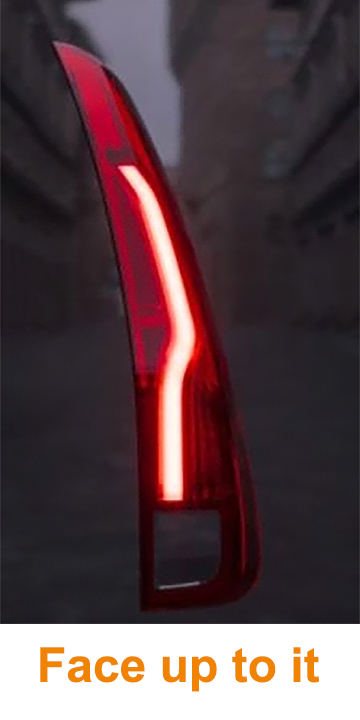

light guide bar lighting simulation (the same end of light emitting, two functions)

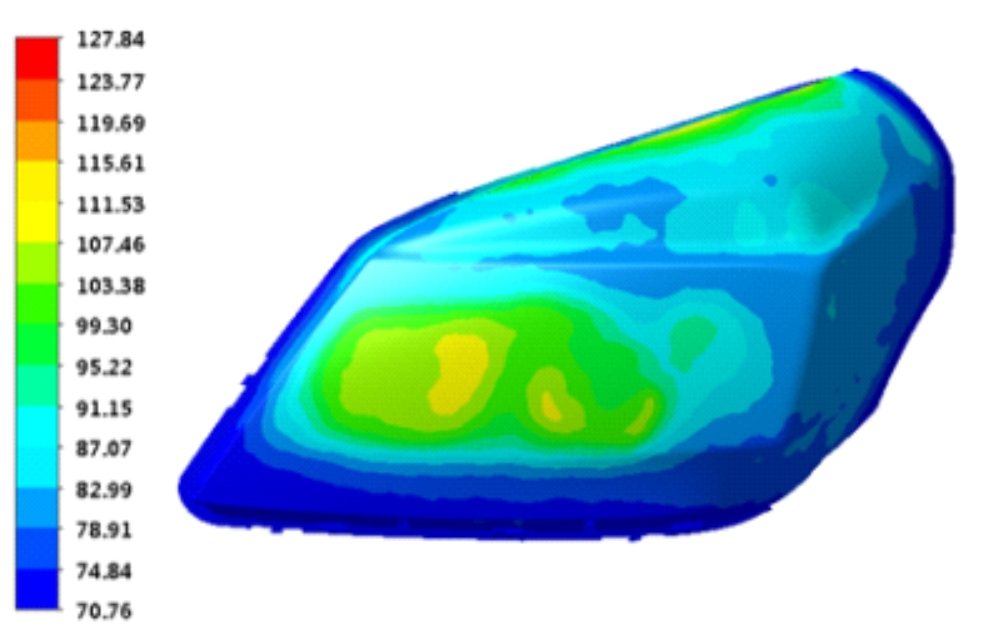

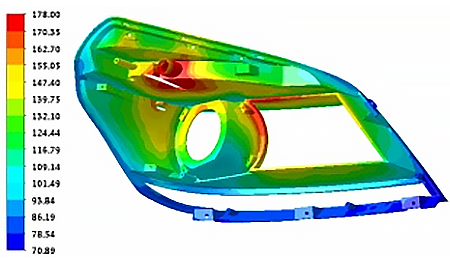

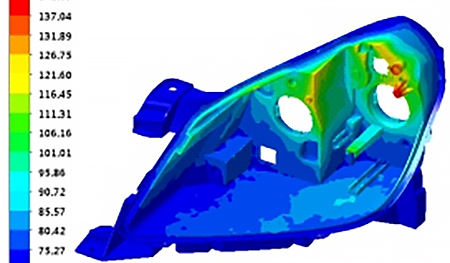

4.lamp heat analysis: CAE-heat resistance analysis case
Temperature Simulation Conditions
Environmental Temperature: 70℃
Lamp Voltage: 13.5v
Wind Speed: 0 M/S

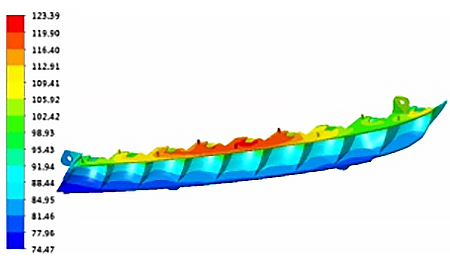

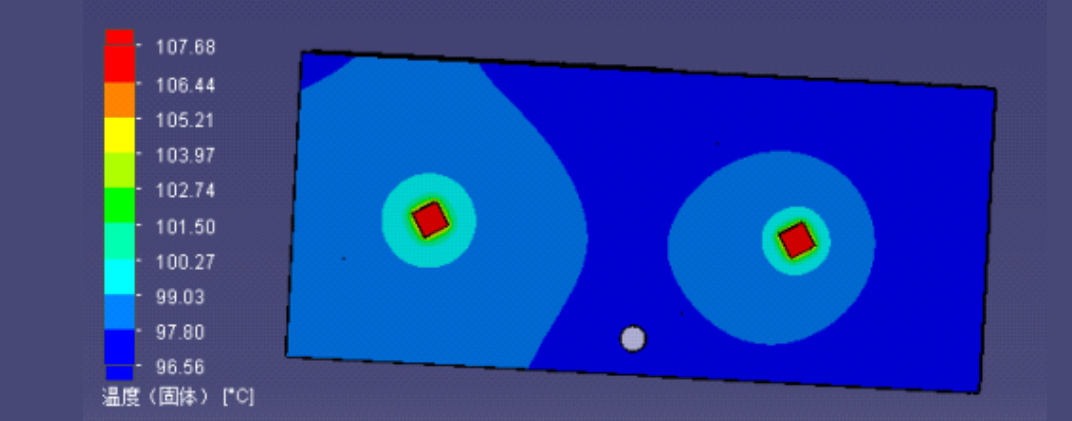

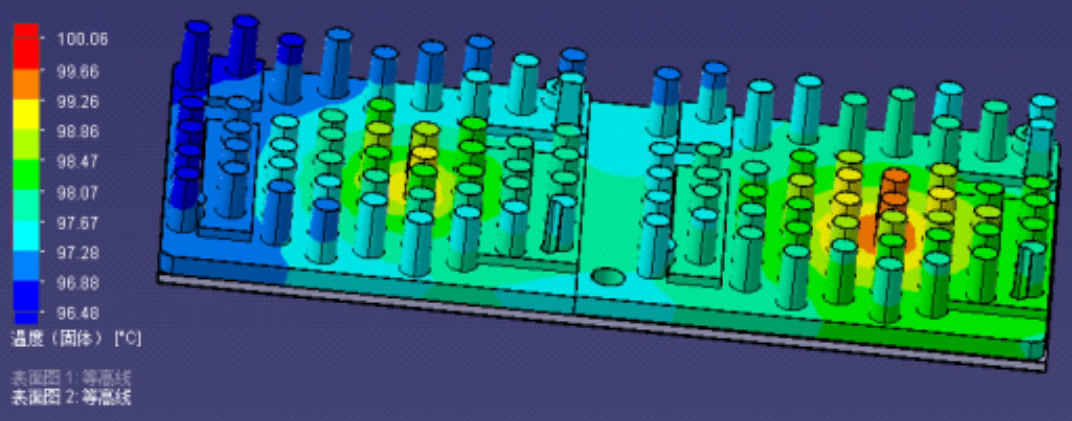

5.LED substrate and radiator: CAE-thermal analysis
6.Lamp fog analysis: case of CAE-air thermal convection analysis

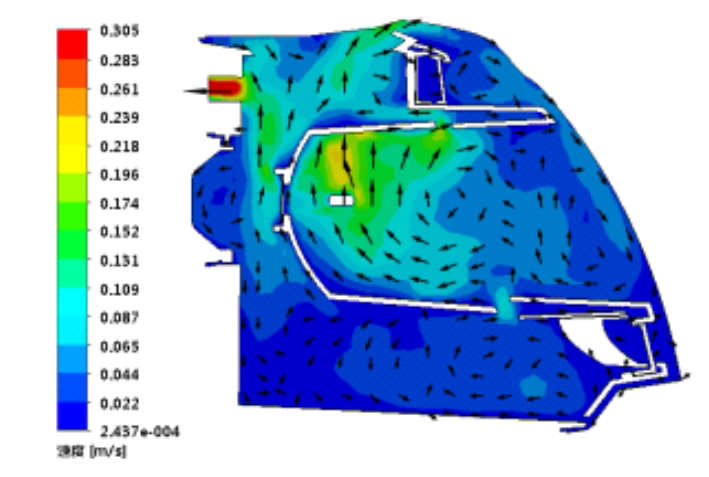

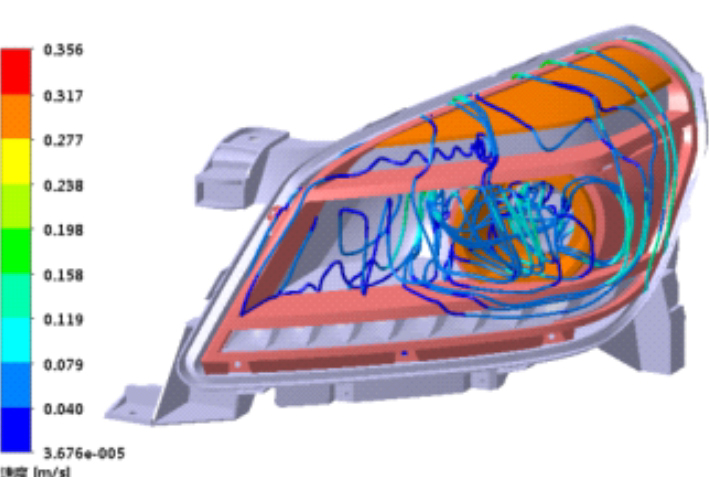

7.The air flow field within the lamp is distributed when the 1, vents are all open.

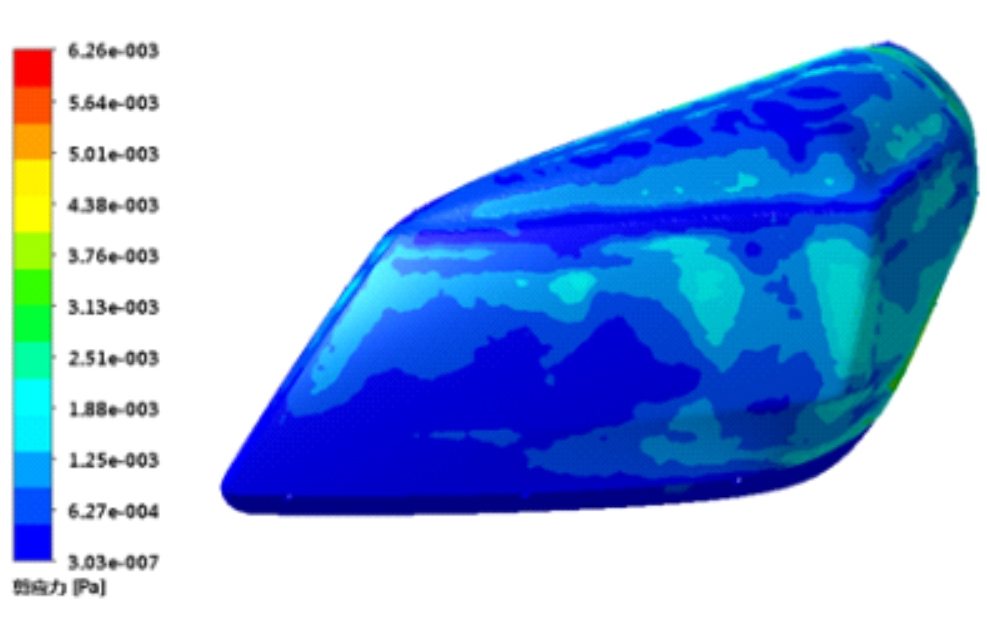

8.Lamp vibration analysis: CAE-vibration simulation
Analysis and evaluation:
a.Assevaluate the first order resonance frequency of lamp reflec;
b.Assess the lamp strength of each component under broadband random vibration;
c.Evaluate the displacement of components at wide random vibration.
b.Assess the lamp strength of each component under broadband random vibration;
c.Evaluate the displacement of components at wide random vibration.
9.headlights: LED two-light lens set-forward design
A. LED dual-light lens group: product assembly, through the movement of the beam baffle, to achieve the near-high beam switch.

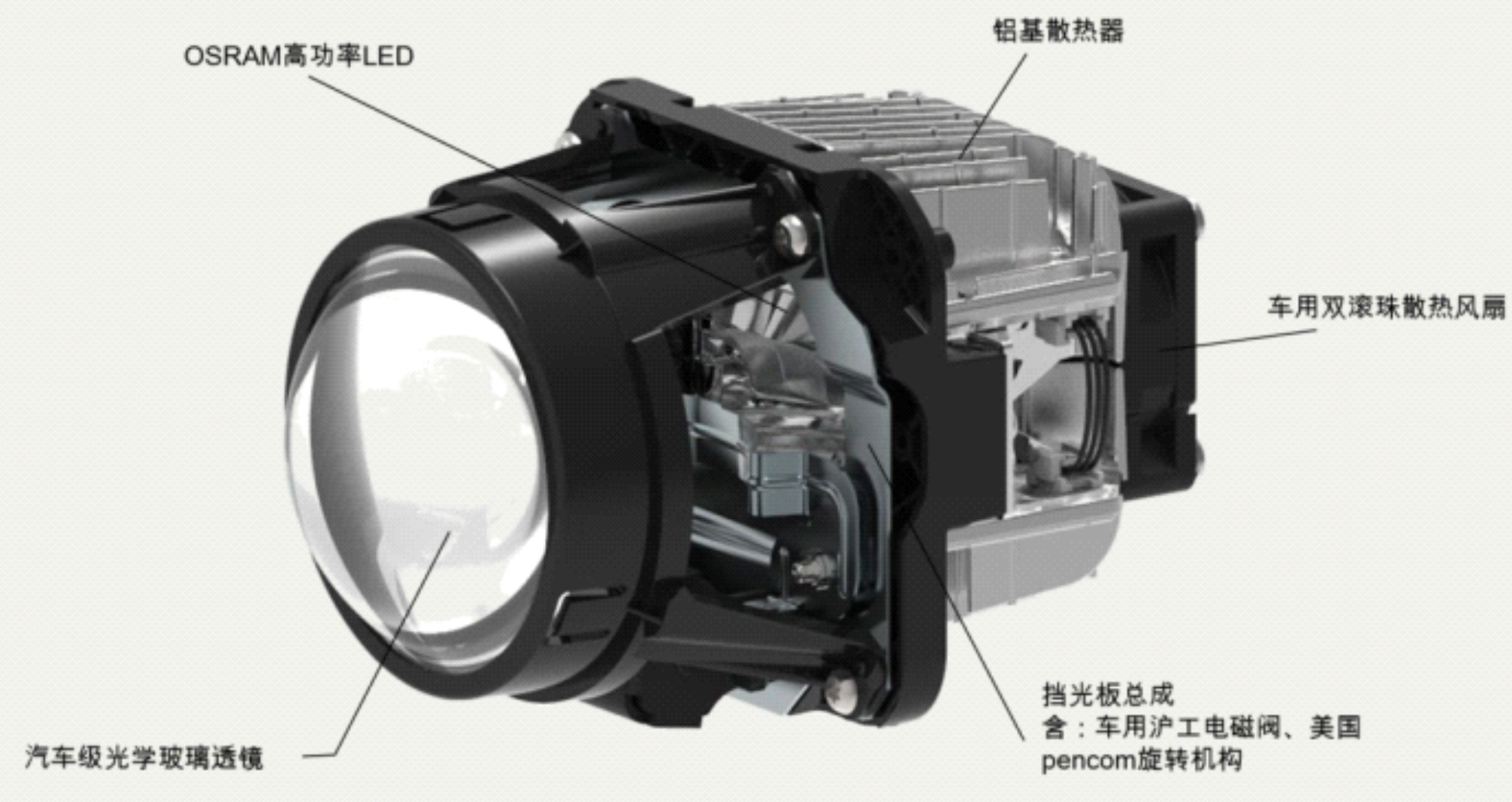

B.LED two-light lens group: Product composition

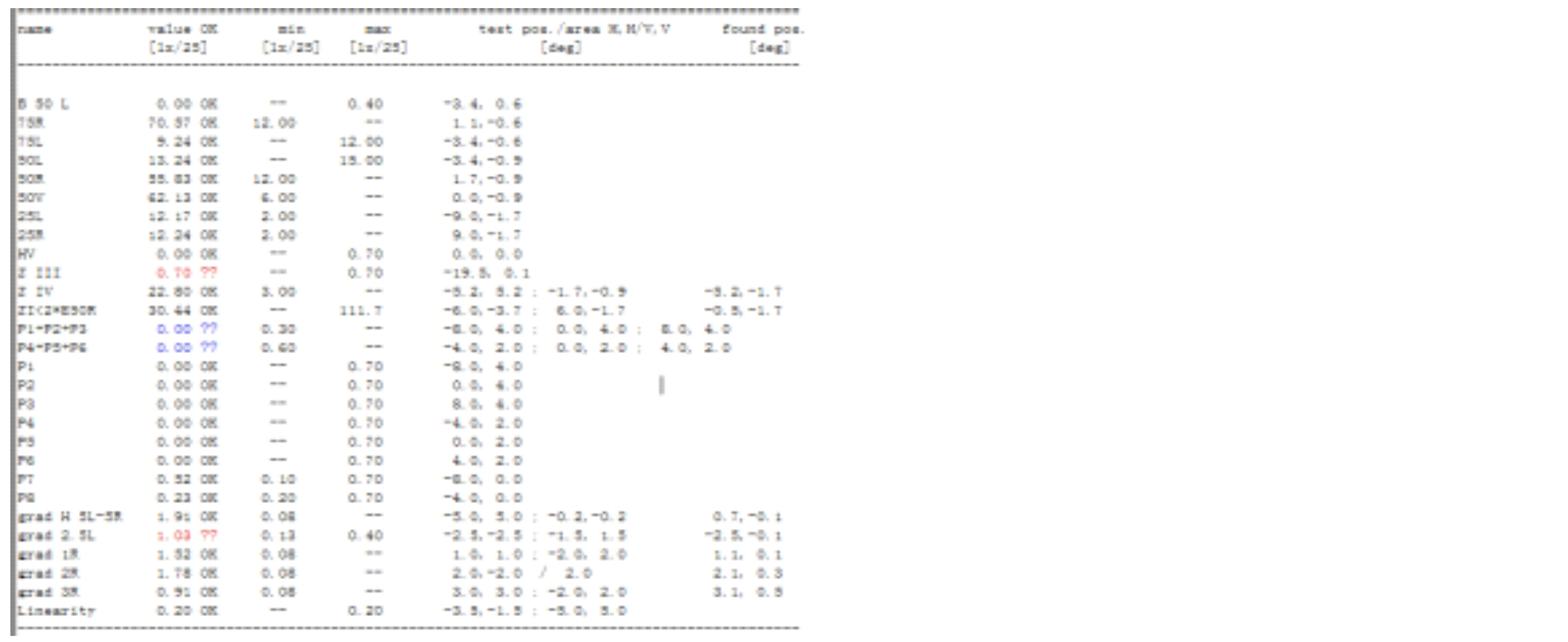

10.LED double-light lens group: near-light light type simulation
LED particle: OSRAM,5 core 15W, lens diameter 70mm.

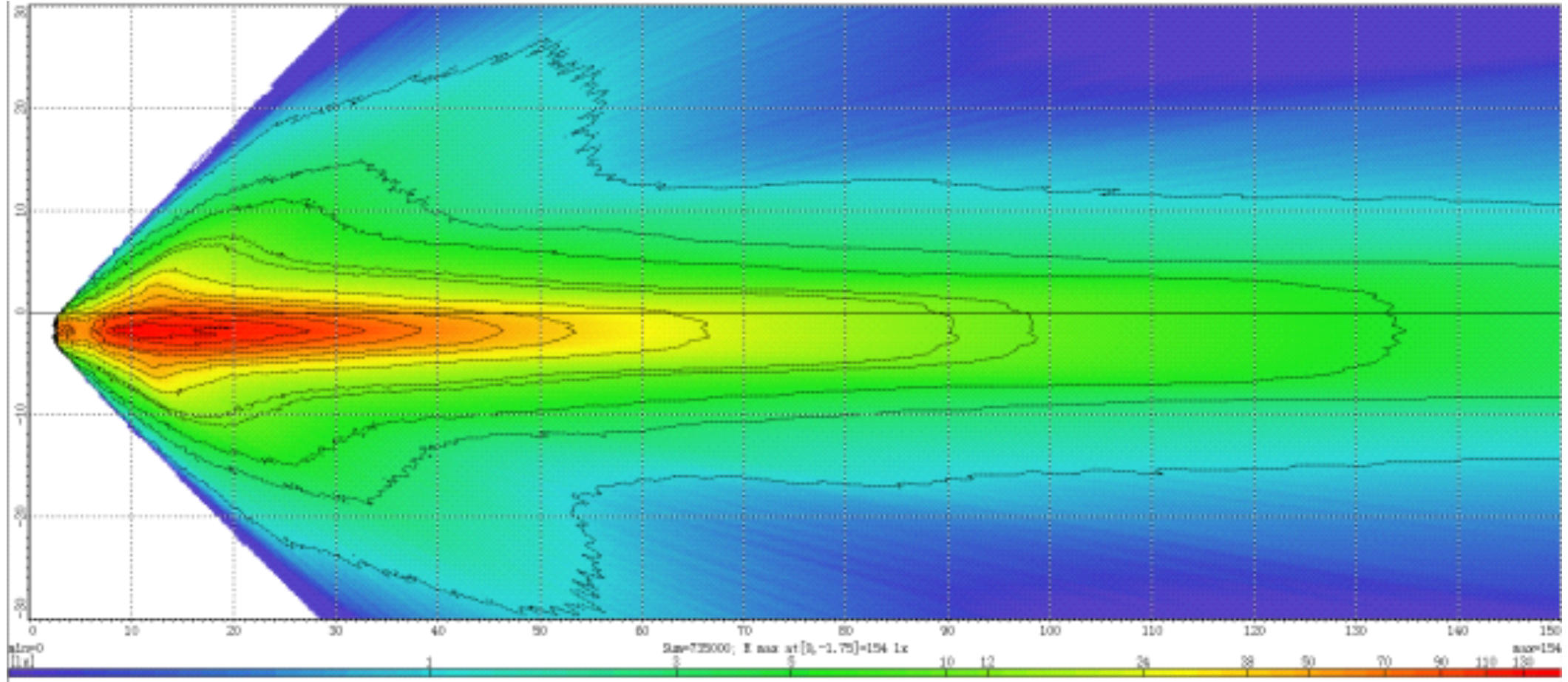

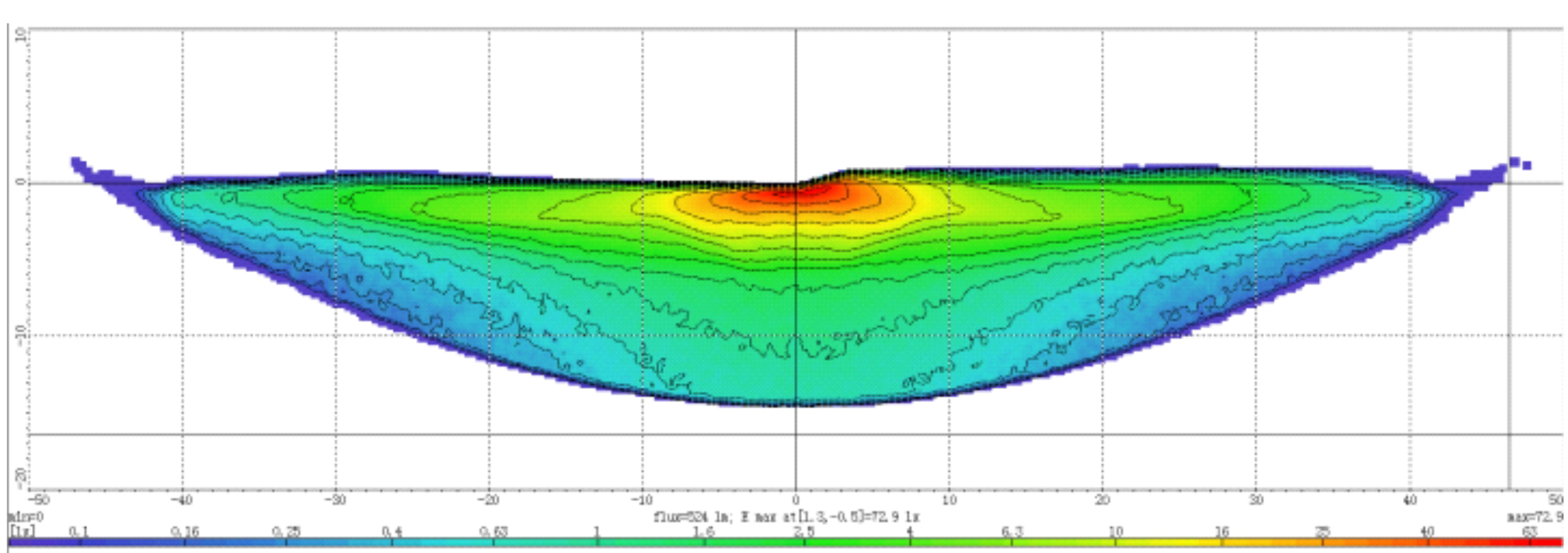

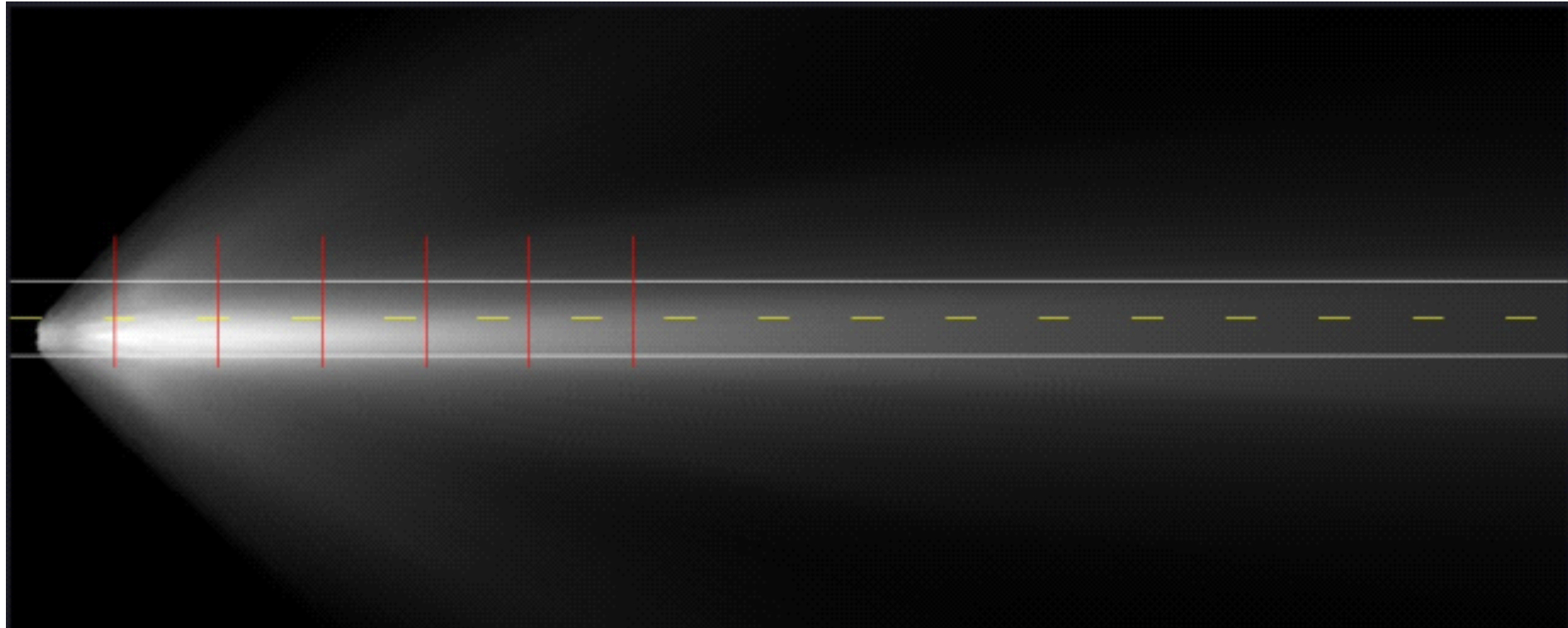

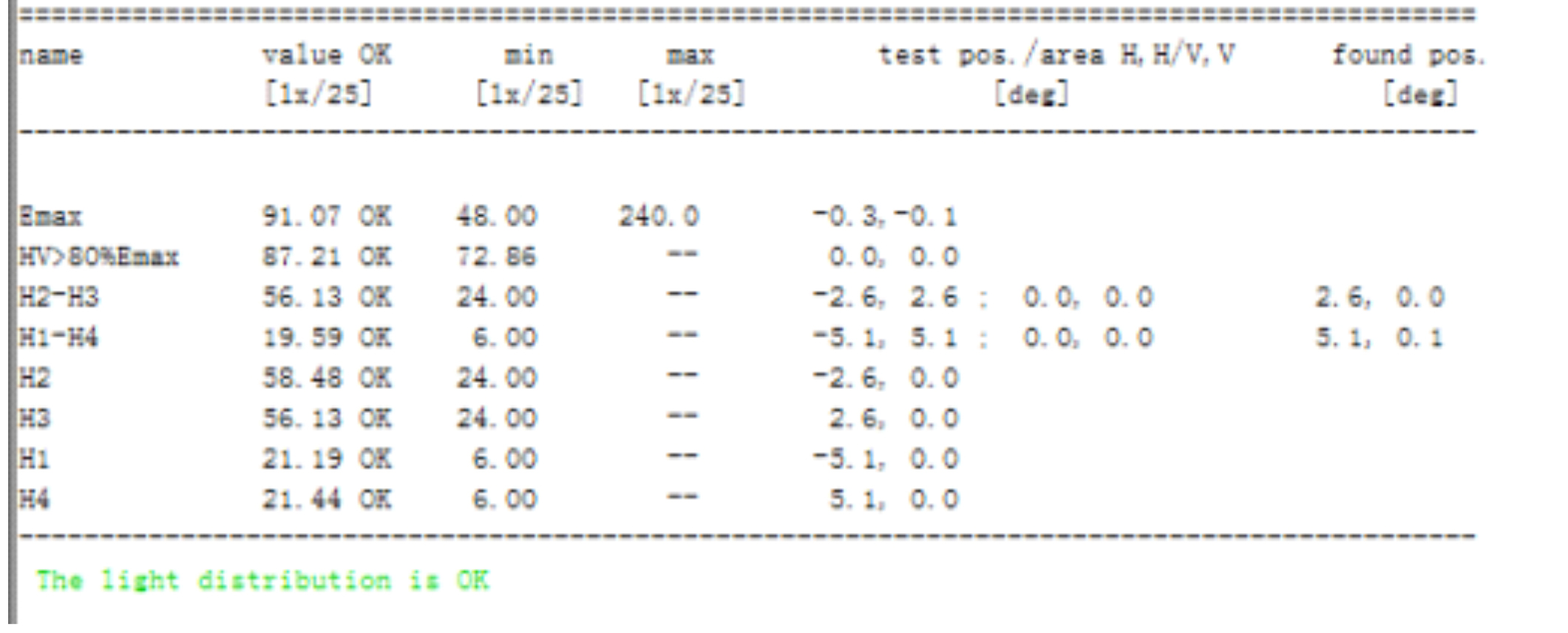

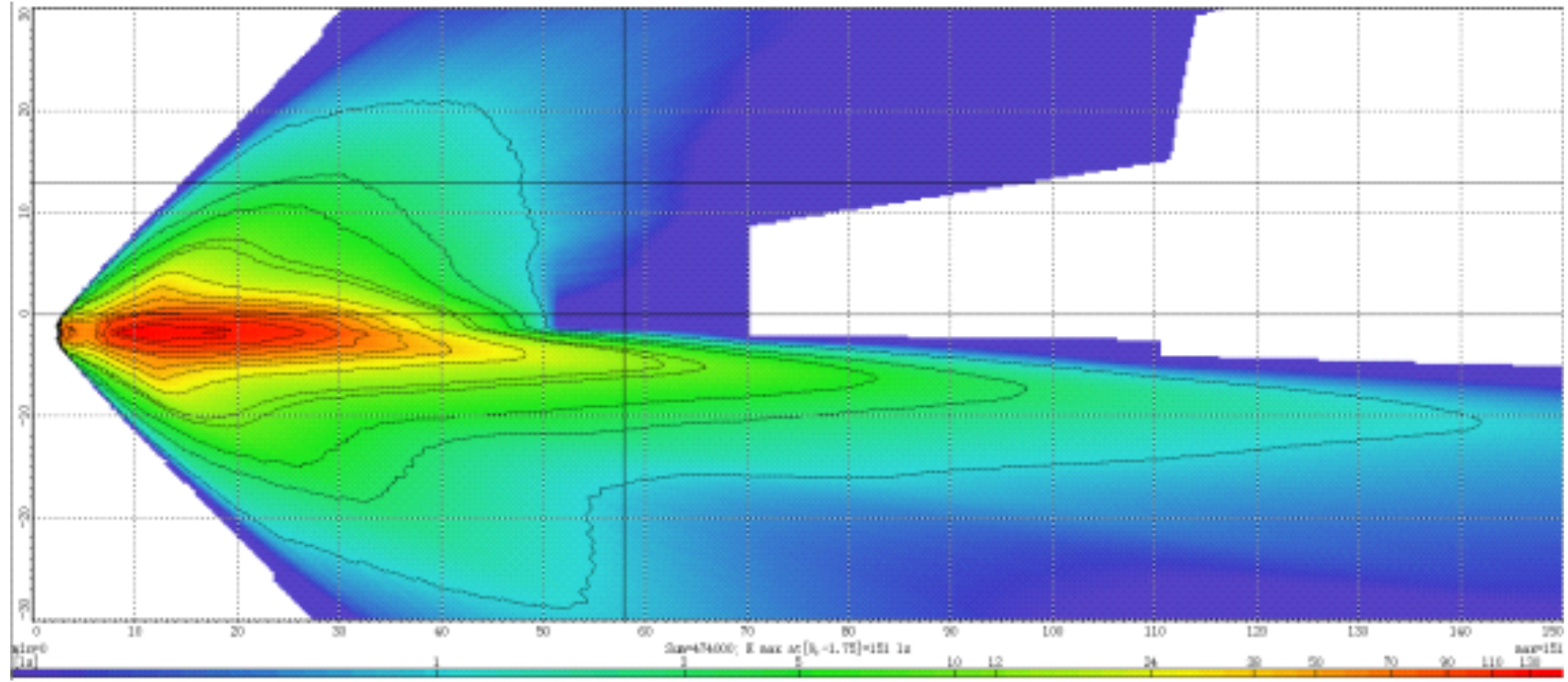

11.LED double-light lens group: near-light road map simulation
12.LED two-light lens group: high-beam type simulation

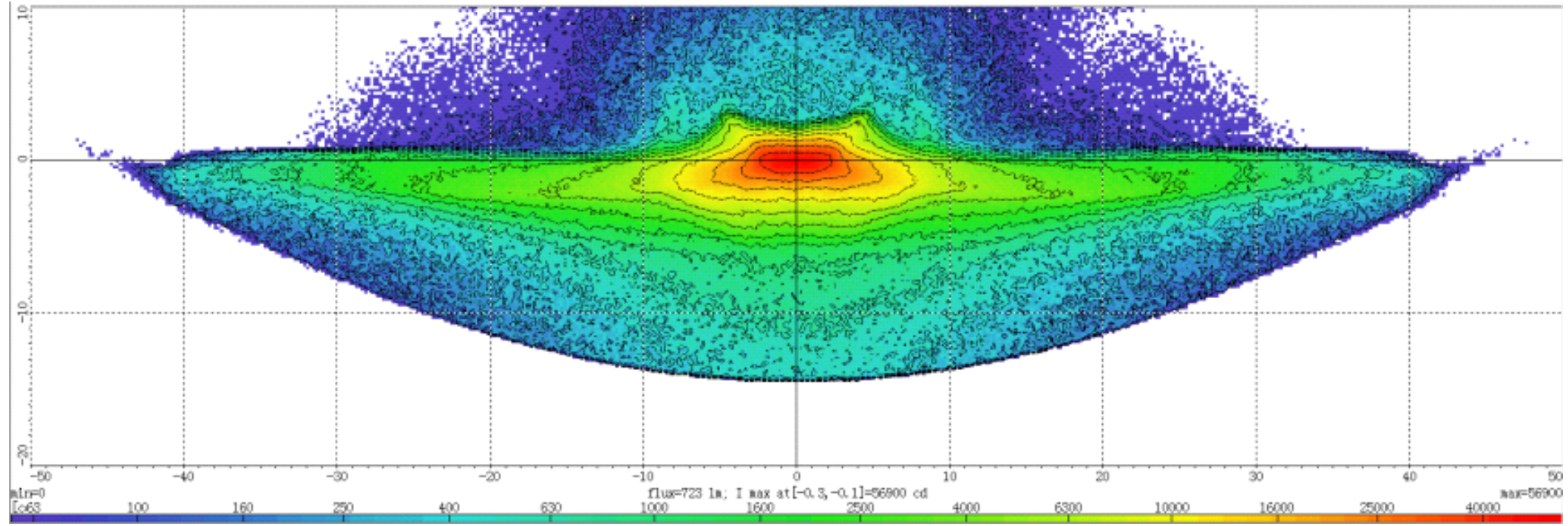

13.LED double-light lens group: high-beam photo map simulation
